Stainless steels are high-alloy steels which have higher corrosion
resistance compared to other steels due to the presence of large amounts of
chromium. Based on their crystalline structure, they are further divided into
ferritic, austenitic, and martensitic steels.

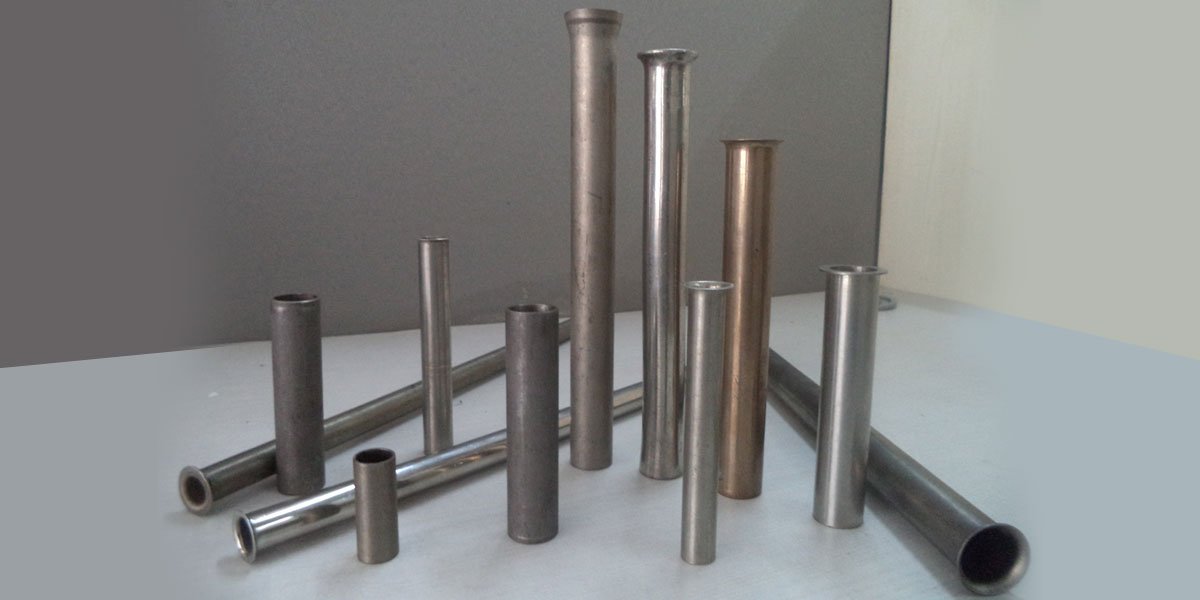

Grade 309 stainless steel has high corrosion resistance and strength compared to
304 stainless steel. The following datasheet gives an overview of grade 309
stainless steel.
Machinability
Grade 309 stainless steel can be machined similar to that of 304 stainless steel.
Welding
Grade 309 stainless steel can be welded using fusion or resistance welding methods.
Oxyacetylene welding method is not preferred for welding this alloy.
Hot Working
Grade 309 stainless steel is hot worked at 1177°C (2150°F) followed by reheating at
982°C (1800°F). It can be then quenched rapidly. Post-work annealing can be done to
restore its corrosion resistance property.
Cold Working
Grade 309 stainless steel can be headed, upset, drawn, and stamped even though it has
high work hardening rate. Annealing is performed after cold working in order to reduce
internal stress.
Annealing
Grade 309 stainless steel is annealed at 1038-1121°C (1900-2050°F) followed by quenching
in water.
Hardening
Grade 309 stainless steel does not react to heat treatment. Strength and hardness of
this alloy can be increased by cold working.
Applications
Grade 309 stainless steel is used in the following applications:
Boiler baffles
Furnace components
Oven linings
Fire box sheets
Other high temperature containers.
